Laticrete Strata_Heat Wires - 120V

Overview

LATICRETE STRATA_HEAT 120V Spliceless Wire provides electric floor warming beneath approved finished floor coverings. Its uniform-diameter connections fit into STRATA_HEAT Mat without excavating pockets for bulky cold-lead or end splices. Choose the cable length for the actual heated area and planned spacing—not simply the room’s total floor area.

Features

• Spliceless transitions simplify placement in the mat castellations.
• Multiple permitted spacing arrangements allow different heat outputs.

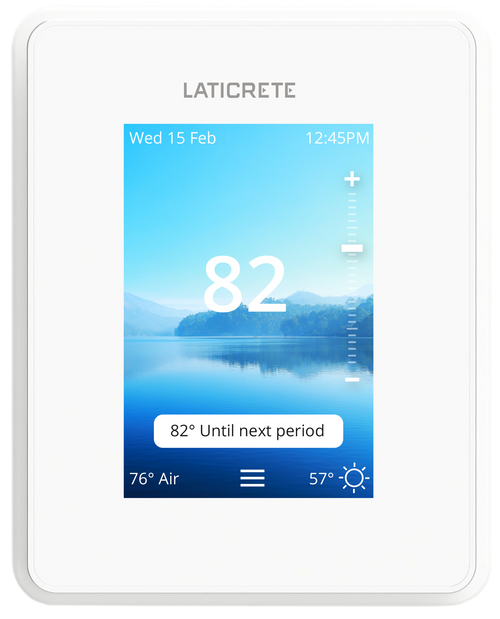

• Designed for STRATA_HEAT thermostats, mat and spacing strips.
• UL-recognized appliance wiring material component.
• Eligible installations may qualify for the LATICRETE Lifetime System Warranty; the complete system terms apply.

Specifications

• Supply voltage: 120V
• Installation location: Interior horizontal surfaces only
• Sizing: Select cable length and nominal coverage for the actual heated area; installed coverage varies with spacing

• Length: 50 ft Length (15 sq. ft.); 67 ft Length (20 sq. ft.); 133 ft Length (40 sq. ft.); 166 ft Length (50 sq. ft.); 299 ft Length (90 sq. ft.); 365 ft Length (110 sq. ft.); 84 ft. Length (25 sq. ft); 100 ft. Length (30 sq. ft.); 200 fr. Length (60 sq. ft.); 233 ft. Length (70 sq. ft.); 266 ft. Length (80 sq. ft.); 332 ft. Length (100 sq. ft.); 398 ft. Length (120 sq. ft.)

Downloads

• Laticrete Strata Heat Wire Data Sheet
• Laticrete Strata Heat Wire Installation Manual

Applications

Use for indoor floor warming over suitable HYDRO BAN Board, concrete, mortar beds, exterior-glue plywood, existing ceramic tile or stone, cement terrazzo and cement backer board. Coordinate the wire, control, substrate preparation and selected floor finish as a complete heating assembly.

Plan Your Installation

• Draw the heated footprint and exclude fixed obstructions as directed by the installation manual. Select the cable before installation; do not cut or shorten its heating element.
• Have the supply voltage, circuit capacity and GFCI requirements checked for the selected cable and thermostat.
• Use the manufacturer’s spacing layout for the mat or spacing strips; the coverage shown in the selector is not universal for every spacing.
• Test and record wire and sensor readings at the stages required by the manual, including before covering the wire.

Common Planning Questions

Can extra heating cable be trimmed off?

No. Select the correct cable length for the planned layout. The heating element must remain intact.

Is this a complete floor-heating kit?

This listing is for the selected 120V heating wire. Plan the compatible control, mounting system and installation materials separately.
