Description
Overview

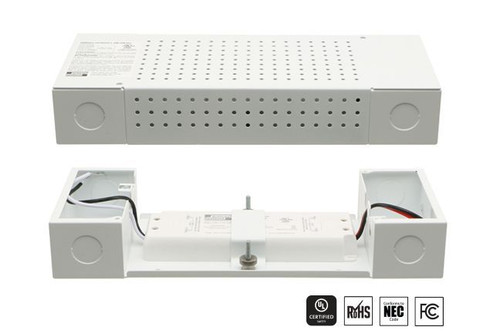

Schluter LIPROTEC-ECD is a hardwired, in-line LED driver for KERDI-BOARD-SNLT niche lighting. It works with a separately purchased compatible dimmer, which lets the bathroom's controls use a coordinated switch style. The driver can supply multiple niches within its 24-watt total output limit.
Features
- Dimming range from 5% to 100%.
- Supplied in a metal enclosure.
- Works with compatible conventional or smart dimmer switches.
- UL listed in the USA and Canada.
What's Included
- LIPROTEC-ECD driver with metal enclosure
Specifications
- Model: LIPROTEC-ECD
- Maximum connected LED load: 24 W total
- Dimming: 5ā100%
- Power connection: Hardwired
- Dimmer switch: Purchased separately
- Manufacturer part: LTECD1W
Downloads
- Schluter LIPROTEC-ECD Dimmable LED Driver Installation Guide
- Schluter LIPROTEC-ECD Dimmable LED Driver Technical Data Sheet
Applications
Use when the niche lighting will be controlled by a separate wall dimmer.
Plan Your Installation
- Add the LED loads of all connected niches and keep the combined requirement within the 24 W driver limit.
- Select the compatible dimmer separately and coordinate its appearance with the other room switches.
- Plan accessible hardwired driver placement and the LIPROTEC cable routes before wall closure.
- An accessible driver location, such as a suitable closet or vanity location under the installation detail, must be coordinated with the cable routing.
Common Planning Questions
Is a dimmer included?
No. ECD is the hardwired in-line driver used with a separately purchased compatible dimmer.
Can one driver supply more than one niche?
Yes, within the 24 W total output limit and the specified connection arrangement.
