Description
Overview

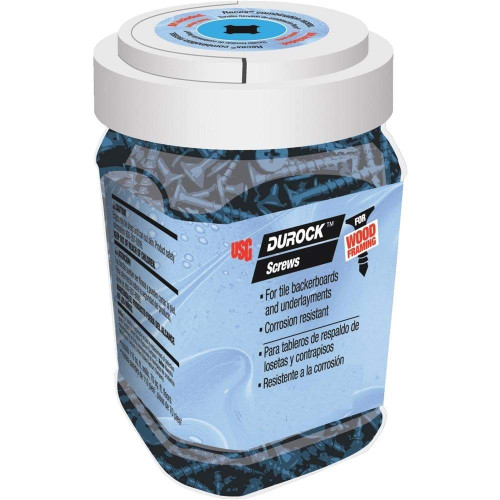

USG Durock wood-framing screws use a coarse hi-lo thread, large wafer head and Recex Robertson/Phillips combination drive to fasten compatible tile backerboards and underlayments to wood. These are the wood-framing screws, not the separate self-drilling screws for steel studs.
Features
- Corrosion-resistant coating designed for 1,500-plus hours of ASTM B117 salt-spray testing before 5% red rust.
- Large wafer head and strip-out-prevention ribs support secure, flush seating.
- Blue finish provides visual contrast against the board.
- Compatible with a #2 square or #2 Phillips drive.
What's Included
- 1-1/4-inch screws: select 200-piece or 600-piece jar.
- 1-5/8-inch screws: select 350-piece jar or 4,000-piece bulk carton.
- Jar packages include a square driver bit; the linked sheet does not establish a bit with the bulk carton.
Specifications
- Framing: Wood
- Thread: Coarse hi-lo
- Drive: Recex Robertson/Phillips combo
- Lengths: 1-1/4 in or 1-5/8 in
- Head: Large wafer type
- Use: Approved interior and exterior assemblies
Size Options
- 1-1/4" 200 Pack
- 1-1/4" 600 Pack
- 1-5/8" 350 Pack
- 1-5/8" 4000 Pack
Downloads
Applications
Use for fastening the specified USG backerboard or underlayment to wood framing or subfloors. Select screw length for the panel and application rather than assuming both lengths cover every installation.
Selection and Use
- The linked table lists 1-1/4-inch wood screws for floors/countertops and walls with 1/4-, 3/8-, 1/2- or 5/8-inch board.
- It lists 1-5/8-inch wood screws for walls and ceilings with 1/2- or 5/8-inch board. Follow the complete assembly requirements.
- Drive screws straight with heads flush, not countersunk. Follow the specified edge distances and spacing.
- The 14–20-gauge steel-stud instructions in the family sheet apply to a different self-drilling screw, not this wood-screw selection.
