Description
Overview
Schluter KERDI-BOARD is an extruded-polystyrene building panel with fleece faces for bonding tile. It serves as a tile substrate and can be used to build shower walls, tub surrounds, counters, partitions, and other tiled elements. Select the thickness for the support and construction detail; thin overlay panels and thicker building panels serve different purposes.
Features
- Lightweight panels are easy to handle and cut.
- Waterproof, dimensionally stable foam core.
- Fleece surface bonds with tile-setting mortar.
- Contains no cement or fiberglass.
What's Included
- KERDI-BOARD panel in the selected thickness and listed panel dimensions
Specifications
- Core: Extruded polystyrene
- Surface: Bonding fleece
- Listed thickness range: 3/16 to 2 in.
- Panel dimensions: Depend on thickness; see the model details
Size and Model Details
- Schluter Part #: KB512201625
- Width: 48"
- Length: 64"
- Thickness: 3/16"
- Schluter Part #: KB912202440
- Width: 48"
- Length: 96"
- Thickness: 3/8"
- Schluter Part #: KB1212201625
- Width: 48"
- Length: 64"
- Thickness: 1/2"
- Schluter Part #: KB1212202440
- Width: 48"
- Length: 96"
- Thickness: 1/2"
- Schluter Part #: KB1512202440
- Width: 48"
- Length: 96"
- Thickness: 5/8"
- Schluter Part #: KB1512203050
- Width: 48"
- Length: 120"
- Thickness: 5/8"
- Schluter Part #: KB196252440
- Width: 24-1/2"
- Length: 96"
- Thickness: 3/4"
- Schluter Part #: KB256252440
- Width: 24-1/2"
- Length: 96"
- Thickness: 1"
- Schluter Part #: KB386252440
- Width: 24-1/2"
- Length: 96"
- Thickness: 1-1/2"
- Schluter Part #: KB506252440
- Width: 24-1/2"
- Length: 96"
- Thickness: 2"
Downloads
Applications
Use the appropriate thickness over suitable backing, on stud framing, or in a supported built-up tile element as detailed by Schluter.
Plan Your Installation
- Choose panel thickness for the intended assembly, then use the corresponding panel dimensions to calculate quantity; not every thickness has the same sheet size.
- Lay out joints, openings and any planned niche or bench before cutting panels.

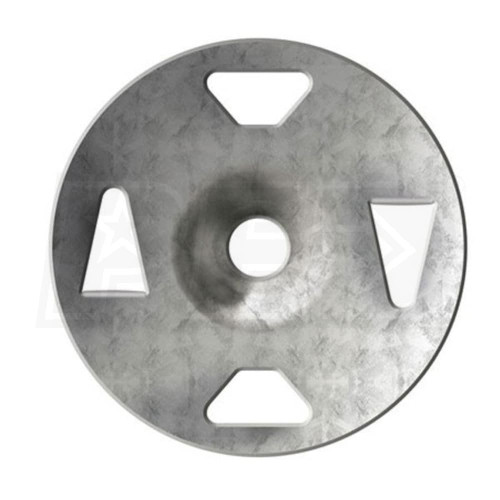

- For framed-wall installations, coordinate the specified KERDI-BOARD-ZS screws and ZT washers with panel thickness and framing. Include the required seam and penetration sealing where waterproofing is needed.
- Check the panel-specific support detail before using KERDI-BOARD for a countertop, seat or freestanding partition.
Common Planning Questions
Is the panel face ready to tile?
KERDI-BOARD provides the bonding-fleece surface for the specified tile installation.
Does a waterproof panel eliminate joint treatment?
No. Panel joints, fastener penetrations and adjoining surfaces must be addressed by the applicable waterproofing detail.
