Description
Overview

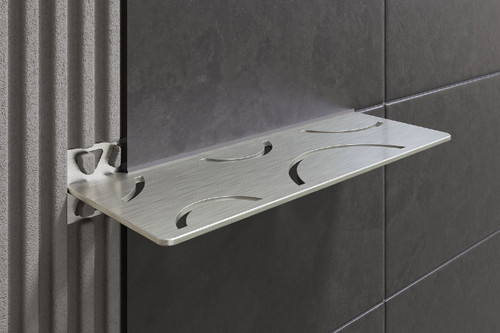

Schluter SHELF-W adds rectangular storage to a tiled wall without a recessed niche. Its two perforated anchoring legs are installed behind the tile, holding the shelf as part of the wall installation. Choose the Curve or Floral design in brushed stainless steel to coordinate with matching Schluter drain designs.
Features
- Wall-mounted shelf projects from a flat tiled surface.
- Two anchoring legs are embedded during tile installation.
- Open design provides a coordinated metal accent for shower or kitchen storage.
What's Included
- Selected brushed-stainless SHELF-W wall shelf
- Curve SWS1D6EB or Floral SWS1D5EB design, as chosen
Specifications
- Shelf dimensions: 11-13/16 × 4-1/2 in. (300 × 115 mm)
- Thickness: 5/32 in. (4 mm)
- Finish: Brushed stainless steel
- Floral part: SWS1D5EB
- Curve part: SWS1D6EB
- Installation: With the tile; anchoring legs behind the tile
- Available design: Curve / Floral
Downloads
- Schluter Shower-SHELF Installation Guide
- Schluter Shower Shelf Brochure
- Schluter Shower System Data Sheet
Applications
Use SHELF-W on a tiled shower wall or kitchen/bath wall where you need an open shelf rather than a recessed compartment.
Plan Your Installation
- Choose the shelf height before the wall is tiled so the two anchoring legs can be embedded in the tile installation.
- Check the 300 × 115 mm shelf footprint against the intended storage items and the available wall space.
- Select Curve or Floral and coordinate the brushed-stainless design with the visible drain or other shower details.
Common Planning Questions
Can it be added to a finished tiled wall like a retrofit corner shelf?
Not by the same method. SHELF-W relies on its behind-tile anchoring legs and must be planned with the tile installation.
Is it the shelf for a prefabricated niche?
No. SHELF-N is the narrower niche shelf; SHELF-W projects from a flat tiled wall.
