Description

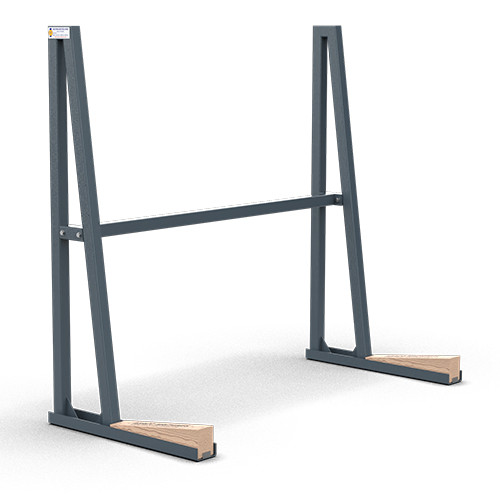

Abaco Truck A-Frame
The Abaco Truck A-Frame is constructed with two Economy A-Frames joined by a crossbar which can be extended to an overall length of five feet. It is designed for picking up slabs and moving them from one job site to another. Strengthening plates have been added at the base, increasing the Working Load Limit and making the sturdy construction of the Abaco Economy Truck A-Frame an ideal choice when compared with other economy class truck A-Frames on the market.
Features:
- Square steel tubing (50x50x2mm)
- Added strengthening plates (150x150x6mm) for increased Working Load Limit and stability from our previous design.
- Includes timber blocks to protect material and improve stability (460x70x110).
- Includes crossbar
What's Included:
- 2x Economy A-Frames
- Timber blocks
- Crossbar
| Model | Length (A) (mm) | Width (B) (mm) | Height (C) (mm) | (D) (mm) | (E) (mm) | Net Weight | Work Load Limit |
| TAF060 | 59-3/16" (1520) | 58-15/16" (1497) | 58-11/16" (1490) | 57-1/8" (1451) | 17-15/16" (455) | 132 lbs | 16,500 lbs Per Side 33,000 lbs Both Sides |
