Description
Overview

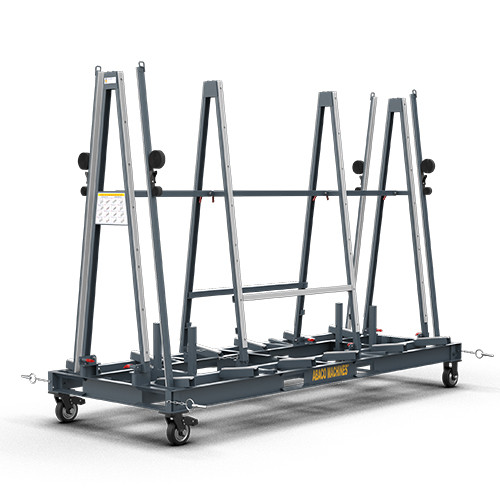

The Abaco Smart One Stop A-Frame combines caster-mounted slab transport with stationary storage. Rubber strips cushion contact, four ratchet-securing bars retain the material, and large forklift slots support compatible handling equipment. Assembled Size selects the frame dimensions in length × width × height order; Rubber Color selects the offered contact lining.
What's Included
One selected A-frame with swivel casters and four ratchet-securing bars. Stone slabs and forklift are not included.
Specifications
| Overall assembled dimensions L × W × H | Rubber choices |
|---|---|
| 90-1/4 × 45-1/4 × 79-1/2 in. | Gray |
| 96-7/8 × 47-1/4 × 95-9/16 in. | Black; White |
- Capacity with casters: 3,300 lb (1,500 kg).
- Stationary capacity without casters: 11,000 lb (5,000 kg).
- Swivel casters; two have brakes.
- Four ratchet-securing bars.
- Dismountable construction for transport and storage.
Downloads
Abaco Smart One Stop A-Frame product information
Applications
Use for compatible stone slabs and sheet materials in workshops, warehouses and construction handling areas. The stationary rating applies only without casters; it is not the rolling capacity. Check the selected frame size, load balance, travel clearance and forklift engagement before planning the move. Follow the manufacturer’s restraint and handling instructions.
