Description
Overview

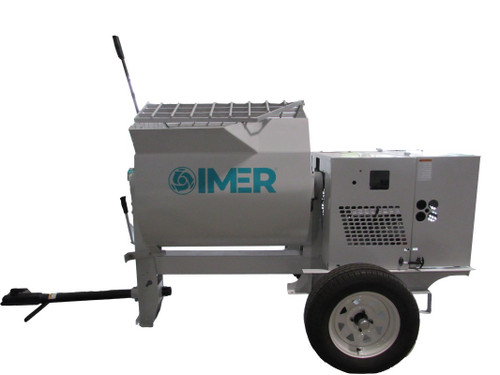

The IMER Workman II 350 is a towable steel-drum multi-mixer with a 12-cubic-foot drum and 9.5-cubic-foot batch output. It is the larger Workman option for mortar, stucco, grout and concrete batches, with gas, 110V electric, 220V electric and no-motor configurations.
Features
- Steel drum with mixing paddles and direct-drive gearbox.
- Worm-drive dumping and Posi-lock hold the selected drum position.
- Commercial-duty hitch, spare tire and 20-inch pneumatic wheels are included.
- Forklift pockets, stabilizing legs and torsion-bar suspension support jobsite handling and transport.
What's Included
- 12-cubic-foot steel drum, mixing paddles, frame and Posi-lock dump mechanism.
- Tow hitch, 20-inch wheels, spare tire and stabilizing legs.
- Selected motor or engine with powered configurations; none with the no-motor option.
Specifications
- Drum / batch output: 12 cu. ft. / 9.5 cu. ft.
- Drum diameter: 34-3/4 in.
- Discharge height: 26-1/2 in.
- Pneumatic wheels: 20 in.
- Gas model: 1105855: 5.5 HP Honda GX
- 110V electric model: 1105862: 1.5 HP, 60Hz, single-phase
- 220V electric model: 1105863: 1.5 HP, 60Hz, single-phase
- No-motor model: 1105856
- Listed machine weight: 650 lb
- Operating size (W × L × H): 50 × 76-1/2 × 56 in.
Motot Type Options
- No Motor
- 1.5 hp Electric (110V)
- 1.5 hp Electric (220V)
- 5.5 hp Honda Engine (Gas)
Downloads
Applications
Use the Workman II 350 for larger site-mixed batches of mortar, stucco, grout or concrete. Its 9.5-cubic-foot batch output—not the 6-cubic-foot output of the smaller 250—is the relevant working capacity for this model.
Selection and Use
- Match the electric option to the jobsite voltage, or select the Honda engine configuration.
- The no-motor version excludes the power unit and should not be mistaken for a complete powered package.
- Plan for the drum’s discharge height and stabilizing-leg clearance; follow the linked operating and towing instructions.
